The smart starting point for laser texturing

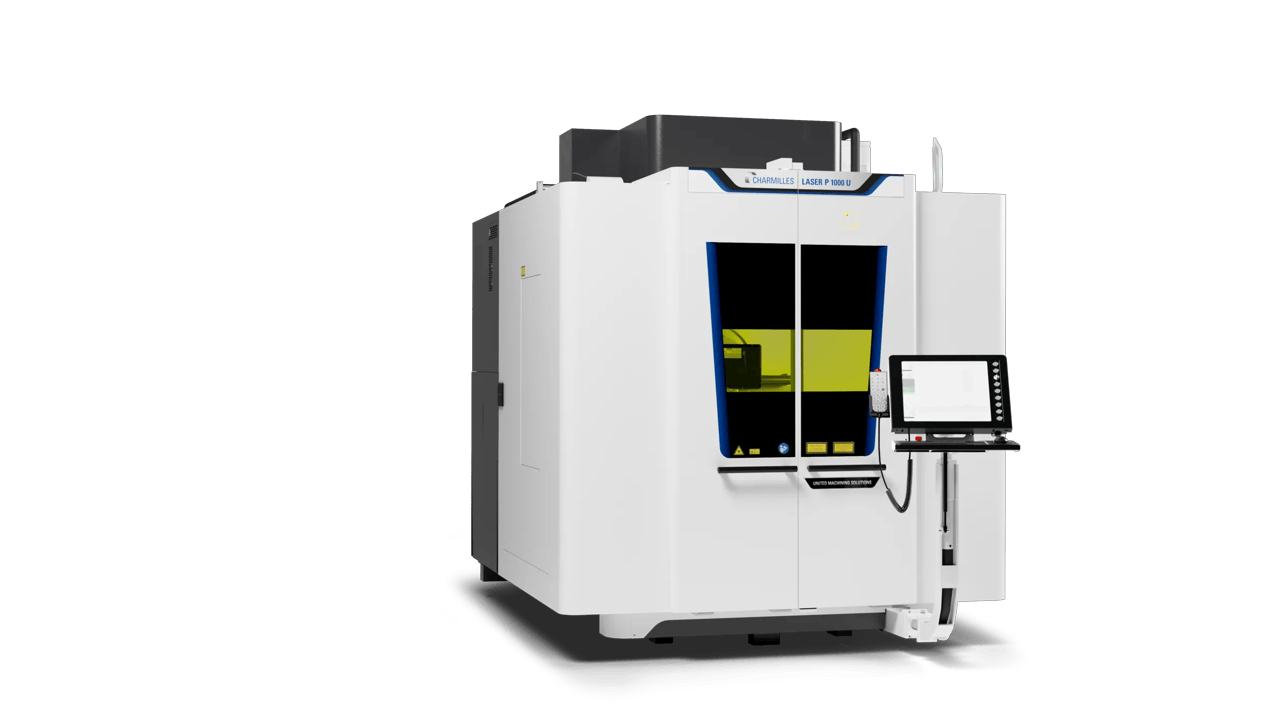

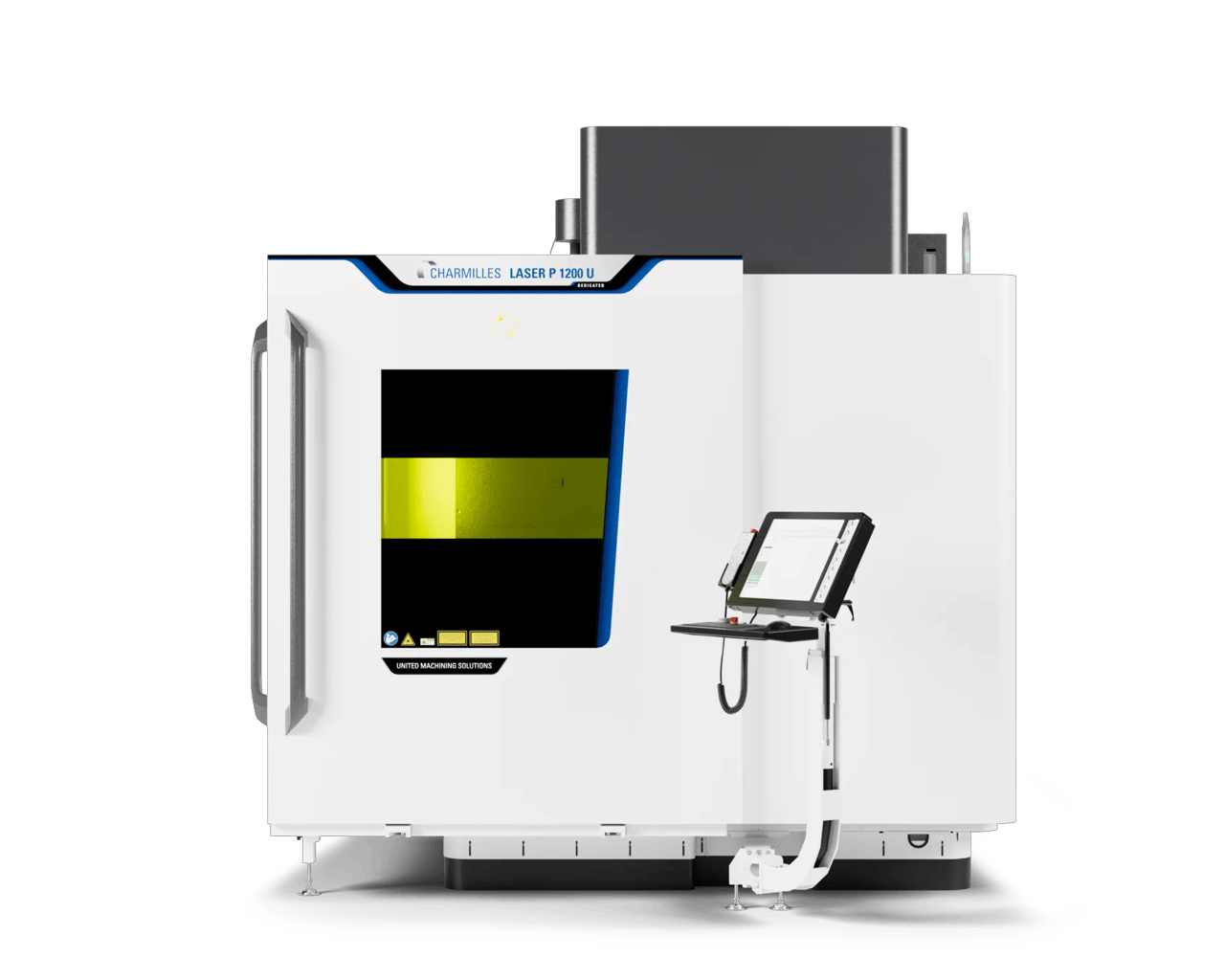

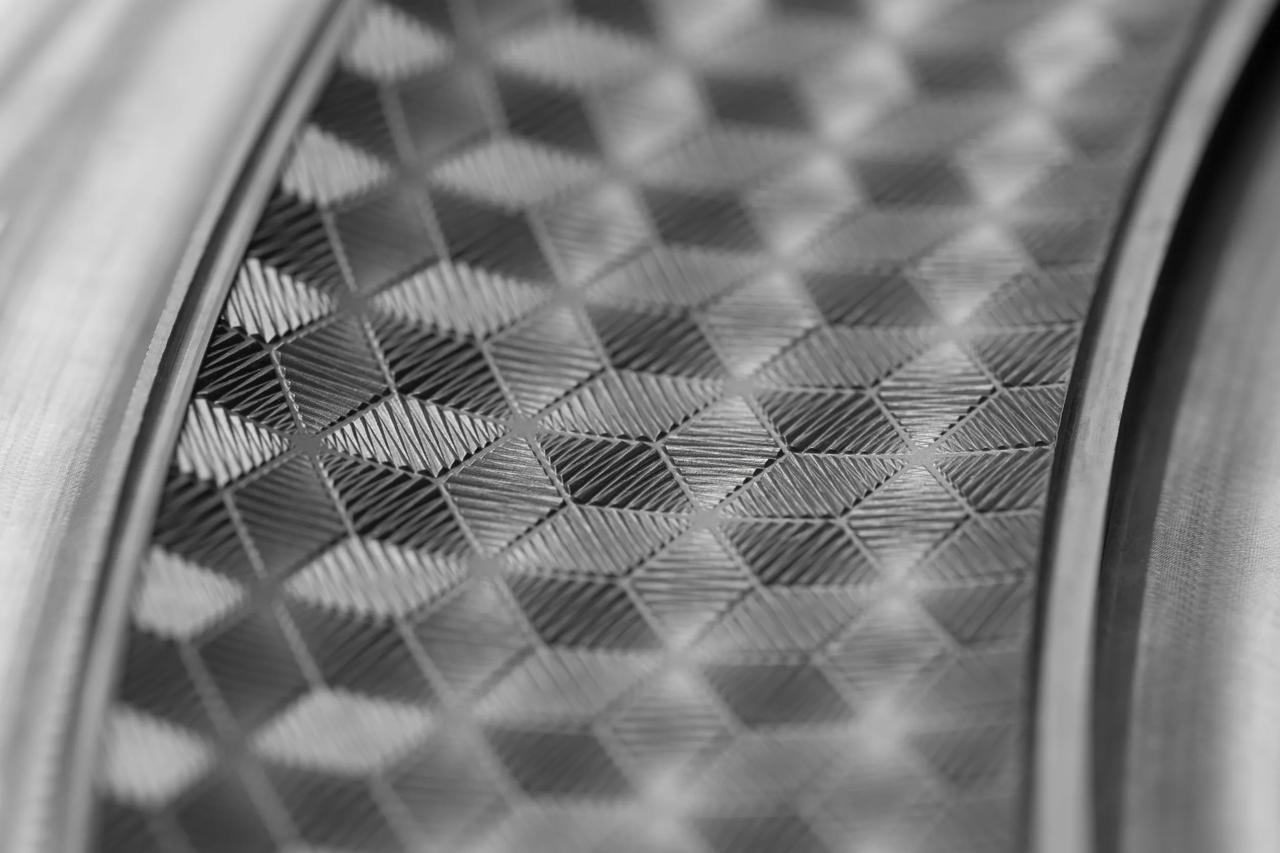

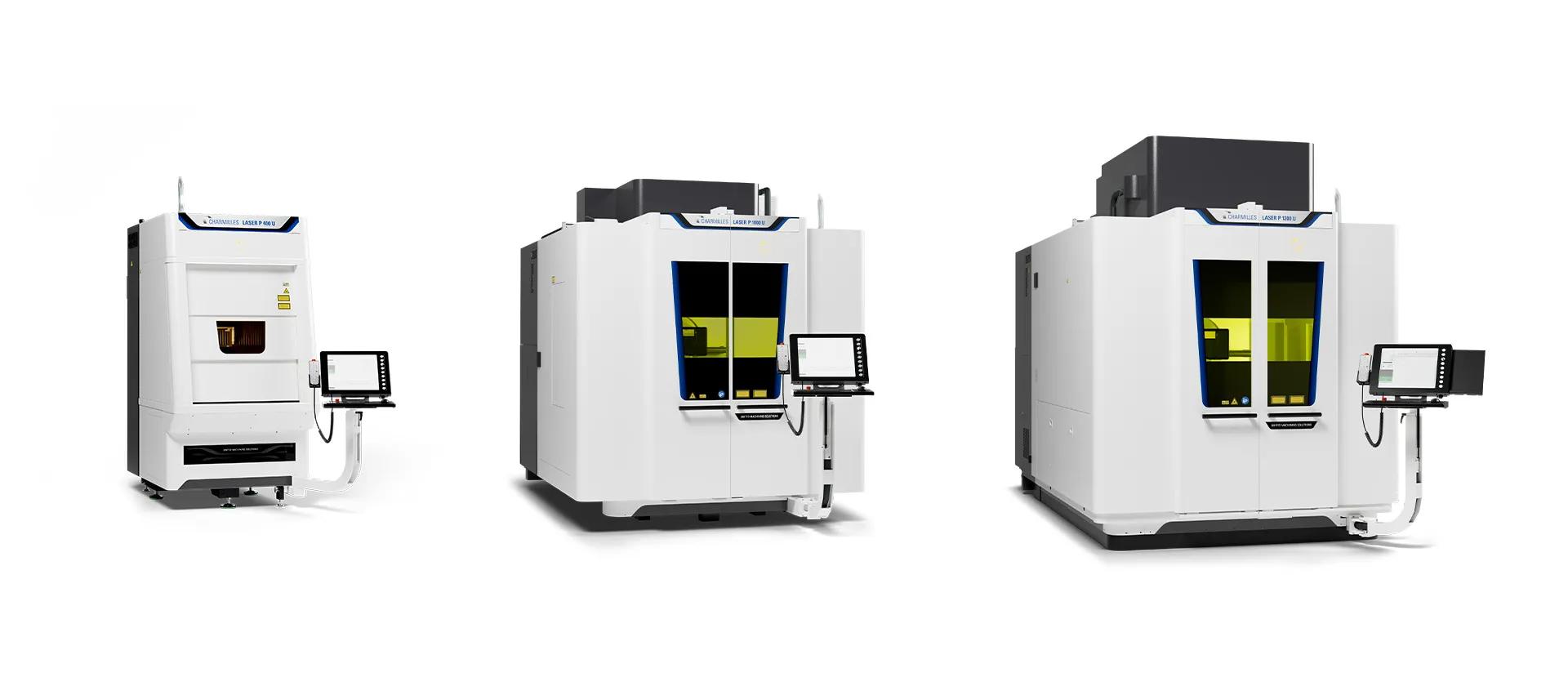

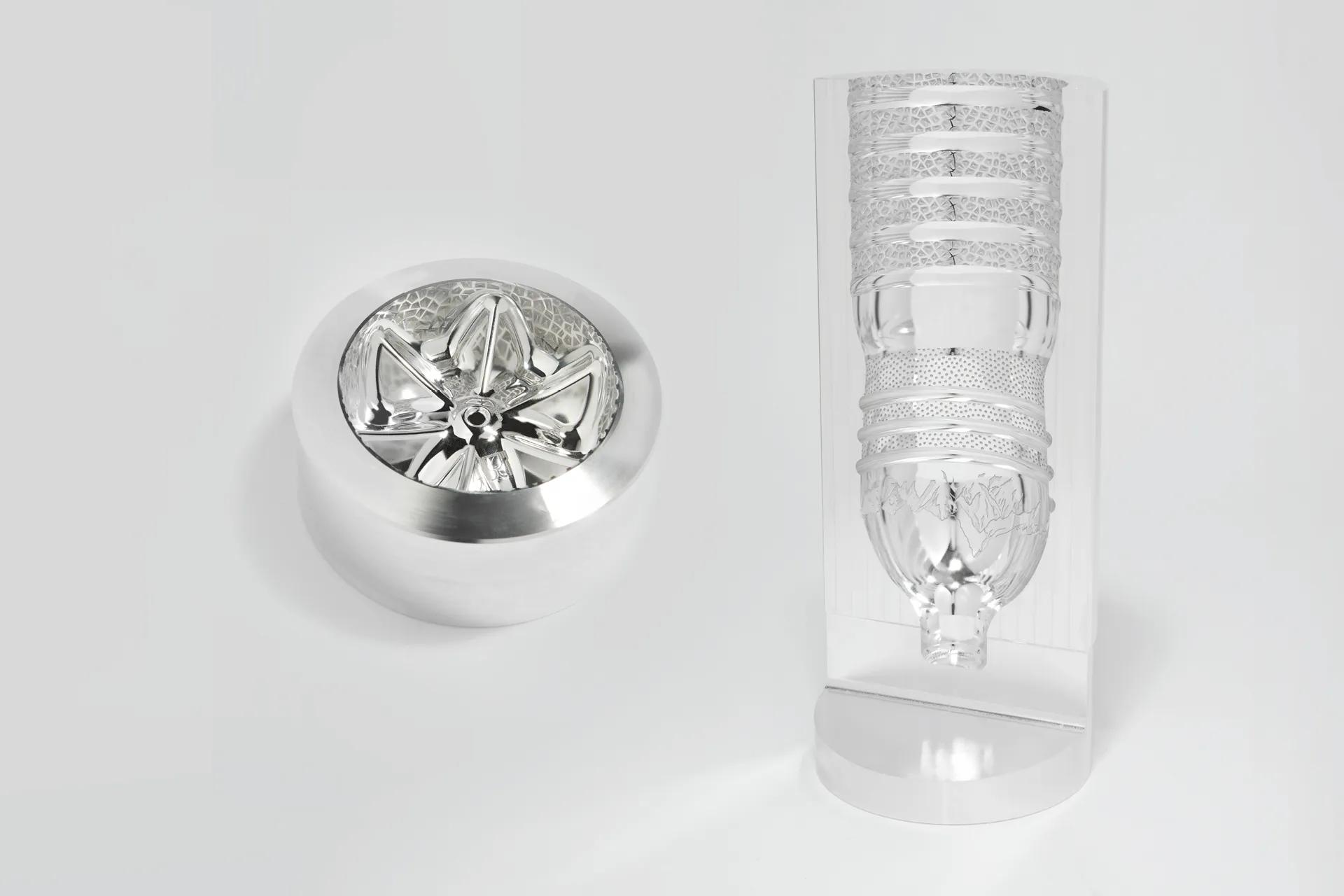

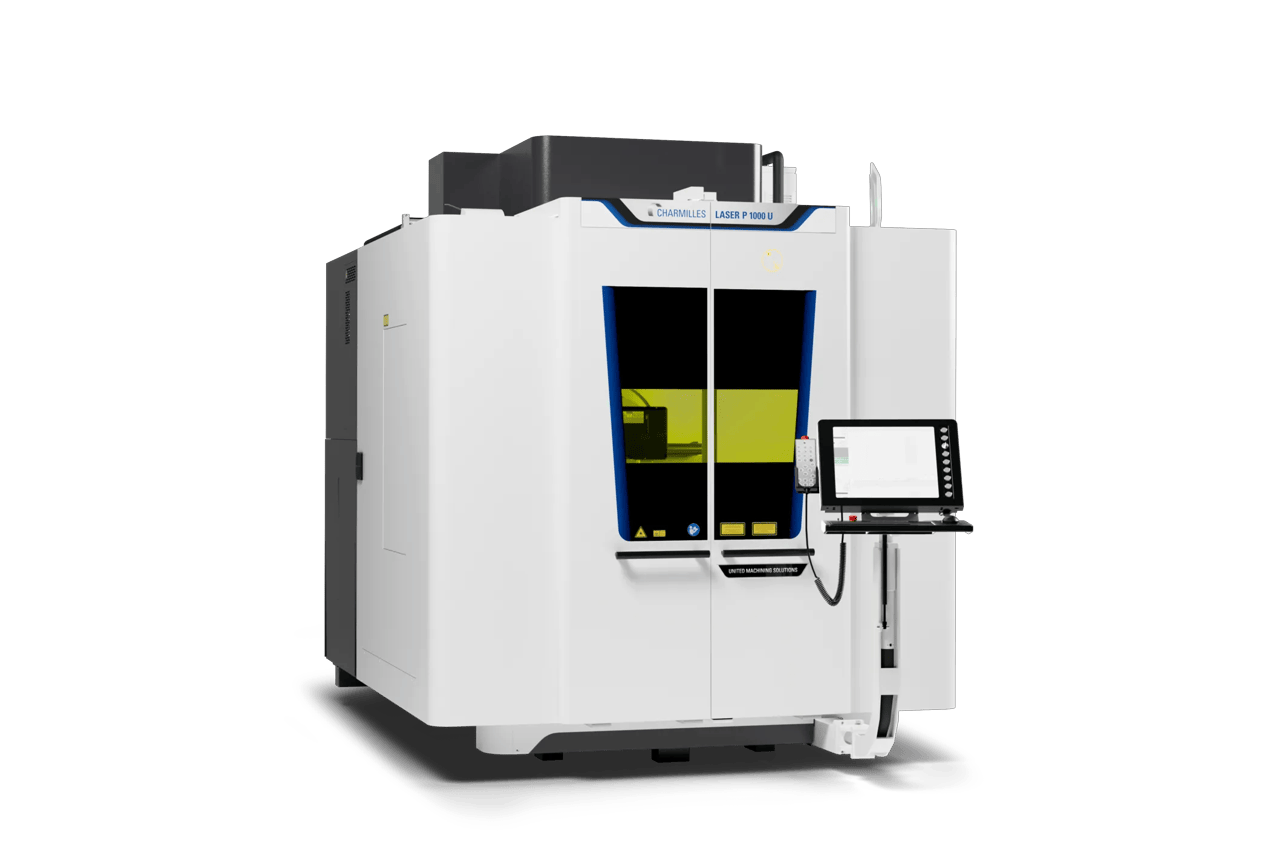

Step into laser texturing with the CHARMILLES LASER P 1000 U and 1200 U, and produce high-quality mold textures across automotive, packaging, ICT, and home appliance industries.
Highlights
Features
What you can achieve
30 μm
Choose the specific lens best suited to your application. Depending on your needs, three types of lenses are available for small details in three-axis Laser operations and for larger five-axis jobs. Our five-axis Laser texturing machine takes care of all the details to serve your success.
50-100 W
Short pulsed laser are needed to perform good texturing operation. From 50 to 100 W we have the right tool to match your expectation. Our Laser Flexipulse offers you the freedom to fine-tune your quality-to-speed ratio according to your application: our solution is all about you.
Ns
The best value for your money, nanosecond Laser matches your needs, offering a perfect compromise between quality and speed perfect to answer most of your current challenges related to your specific surface texturing needs.
5 axis

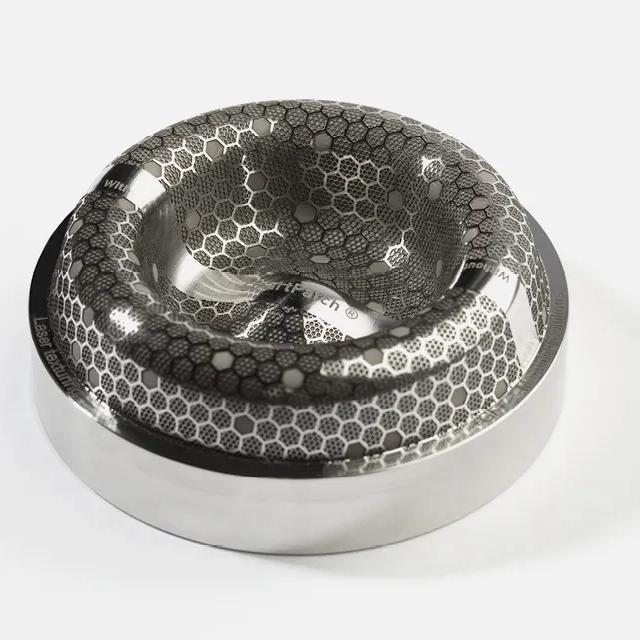

Our Laser machine offers you the possibility to apply your desired texture on any 3D complex parts with the requested quality, thanks to our 5 axis Laser ablation technology.
Your benefits
A fully digital process ensures seamless texture continuity and consistent quality. Control every geometrical detail, orientation and size with unmatched precision.
Automation
CHARMILLES laser machines are designed for seamless integration with SYSTEM 3R automation — enabling unattended operation and maximum productivity.
- Palletized Handling WorkPal 1 and WorkPartner 1+ automate pallet and workpiece changes on laser machines.
- Scalable Robot Automation: The Transformer T3-100 to T3-600 and Transformer 6-Axis Robot scale from entry-level automation to fully robotic laser cells.
- Hybrid Automation SYSTEM 3R Hybrid Automation combines palletized and parts handling for fully automatic workpiece changeovers.
- Lights-Out Manufacturing Autonomous Mobile Robots (AMRs) enable fully unmanned laser production around the clock.
Software
LaserSUITE360
LaserSUITE360 includes a series of CAD/CAM tools to prepare and optimize your job from tool path generation to precise Laser parameter management, tool path visualization and anti-collision simulation.
Specifications
Machine
- Machine dimensions*
- 2240 x 2601 x 2908 mm
- Approx machine weight
- 6500 kg
- Focal length
- 100/160/254 mm
- Ytterbium pulsed fibre laser
- 50 / 100 W
- Max. power consumption
- 4 kW
Axes
- X, Y, Z travels
- 1000 x 560 x 550 mm
- Laser titling axis A
- -50 / 135 °
- B axis max. speed
- 160 °/s. °
- B axis table diameter
- 380 mm
Work area
- Max 5 axis machining volume
- Ø 460 x 570 ** mm
- Max workpiece volume
- 510 x 480 ** mm
- Max workpiece weight 5 axis
- 150 kg
- * Width x depth x height ** FL160
